M02 User Manual
Product Parameters:
Model: TOKQI M02
Support mobile phone weight: ≤280g
Support mobile phone thickness: ≤11mm
Support mobile phone width: 50~90mm
Battery capacity: 2600mAh
Charging time: About 3h
Work time: 7-8h
APP name: Gimbal Show
Support mobile phone system: Android 9.0 and above; iOS 11 and above
Bluetooth name: M02-XXXXXX
Gimbal working mode: Semi-follow, Full follow, Fully Locked, POV, Inception Space, Semi-follow Go Mode, Full follow Go Mode.
Tracking Mode: Face tracking, Object tracking (in app)
Gesture Operation: YES (in app)
Selfie Stick Mode: YES
Zoom function: YES (in app)
Manual focusing: YES (in app), But Some phones do not support manual focusing.
Intelligent Tracking
The protagonist is always in the c position.
ObjectTracking: After locking the target long press the trigger button (lock button) to achieve object tracking.
Method one:
Long press the trigger button
Method two:
Long press the lock button
Three-Axis Stabilization
Roll Axis Adjustable angle : 325°
Pan Axis Adjustable angle : 300°
Tilt Axis Adjustable angle : 80°
Please note: hen you receive the M02 gimbal, both the pan axis and the tilt axis are locked, and you need to unlock these two axes before you can start using gimbal. If used directly without unlocking, it is easy to damage the motor.
Inteligent Multifunctional Remote Control
Remote remote control, full view of scenic characters.
Magnetic Connection: Easy to remove and install back.
Multi-Functional Keyboard
One-handed operation, intuitive key arrangement.
— M button/Remote control power button
(Quickly switch between horizontal and vertical shooting)
— Lockout button
— Camera button
— Joystick(control gimbal rotation)
— Zoom/Multiplier control wheel(some phone model dont support).
Seven Gimbal Modes
Simple miror movement can shoot the same blockbuster as the photographer.
Inception Space
One-click production, endless creation
Mad Dog Mode
The gimbal moves with your speed to achieve the best shooting effect.
Accurately and quickly lock the targe.
At this point the motor torcue and response speed of the stabiiser are at their maxmum.
Method one: Press once+long press trigger button
Method two: Press once+long press lock button.

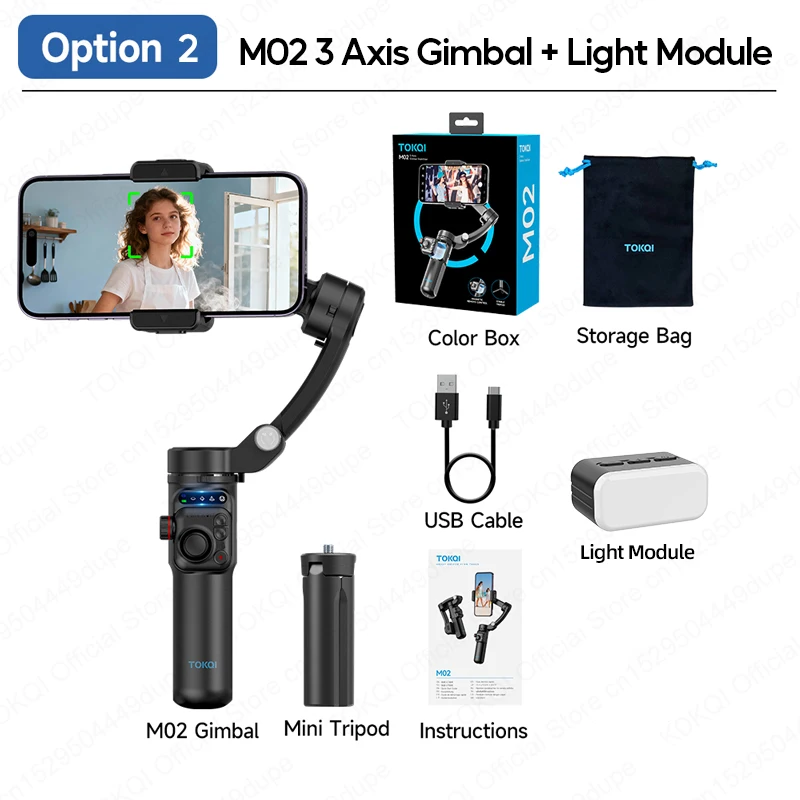

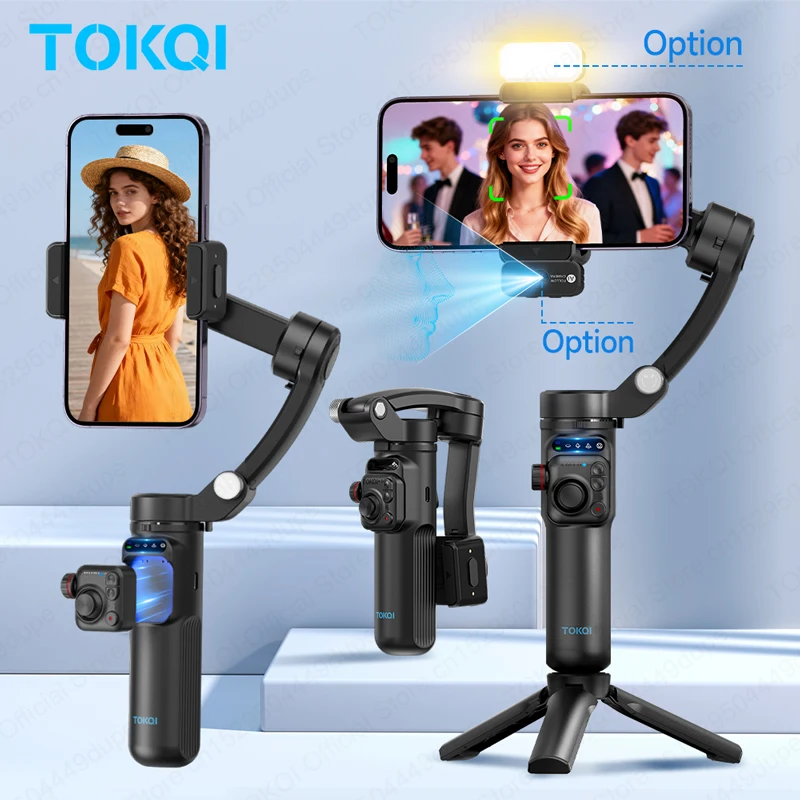

Optional Magnetic Fill Light
One second adsorption,
multiple adjustable light effects and brightness.

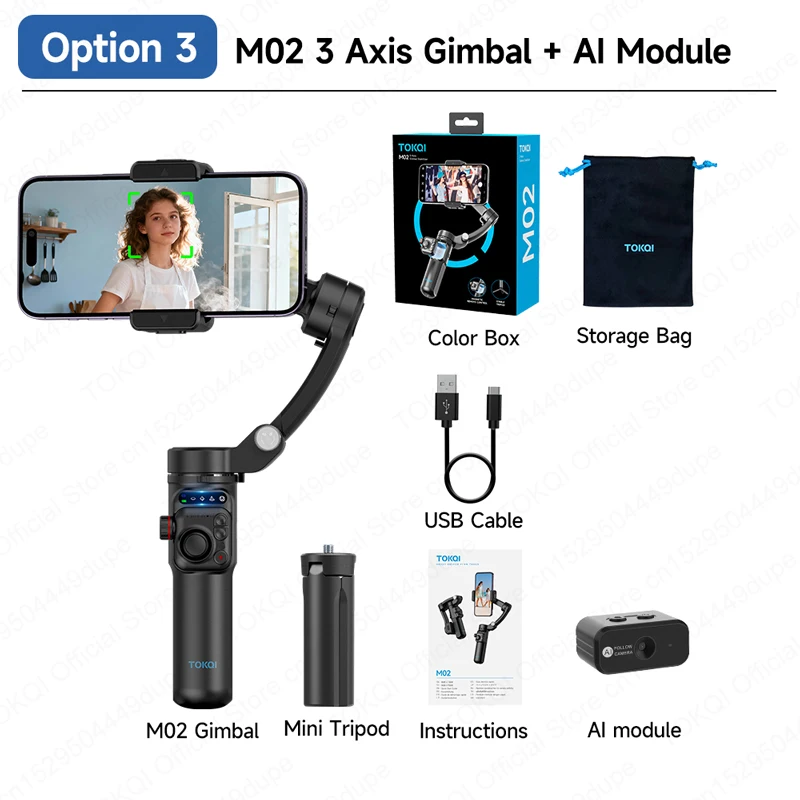

Optional AI Tracking Module
No need for an app, All intelligent face tracking can be easily achieved, and gesture control is also supported.
Note:
If an AI module is required, select the option with an AI module.
Zoom/Multiplier Control Wheel
Real-time adjustment of the image’s reality and distance.
*Zoom/focus function is notsupported for some models.

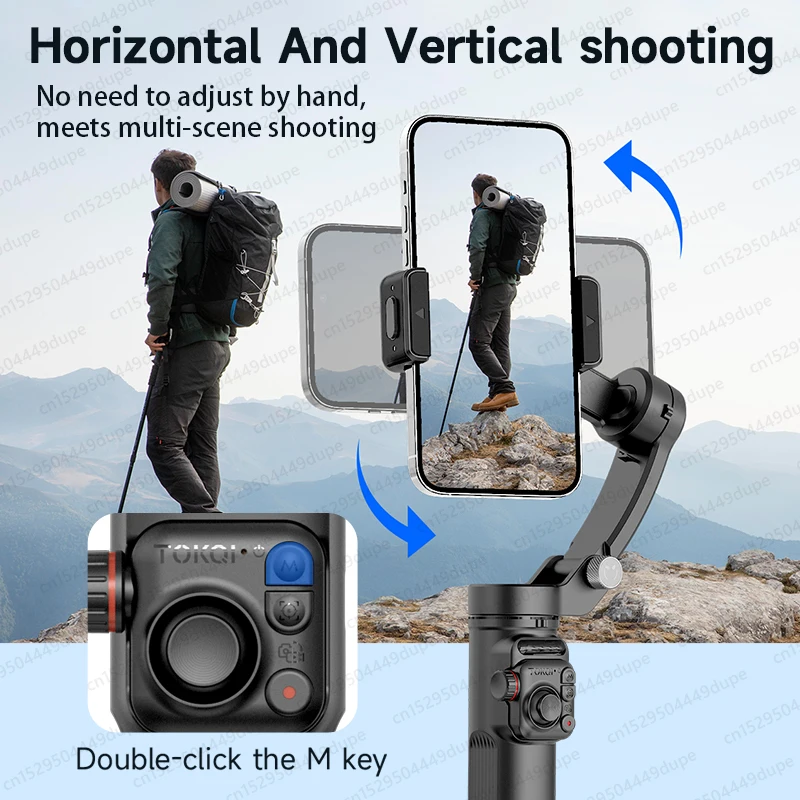

Horizontal and Vertical Shooting
No need to adjust by hand, meets multi-scene shooting.
Double-clik the M key
Equipped with Tripod
Free your hands for easy shooting.
Super Battery Life
Travel shooting, worry-free shooting.
Folding and Portable
Easy to carry and shoot wherever you go.
Product Size: 157x106x65mm
Product Weight: 360g
Exclusive APP
After the gimbal is successfully connected to the APP, it has many rich functions.
–LIFE Mode, One-Touch Film.
–Massive Selection Of Templates
–Intelligent Tracking
–Gesture Control
–PANO CloneMe
–Dyna-Zoom
–Timelapse
