Smart Control Panel 3.5inch BLE Central Control Panel 3 Relay Physical Button Built-in BLE Mesh Hub Work

Name: Smart Control Panel 3.5inch BLE Central Control Panel 3 Relay Physical Button Built-in BLE Mesh Hub Work with Tuya APP IR Device
SKU: 1005008457682873
Availability: InStock

145.82$

Smart Control Panel 3.5inch BLE Central Control Panel 3 Relay Physical Button Built-in BLE Mesh Hub Work with Tuya APP IR Device

145.82$

color

Ivory

Clear

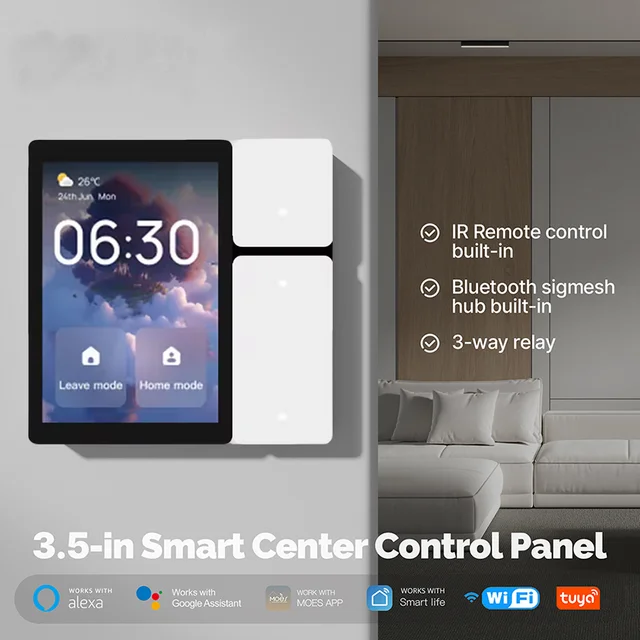

3.5 Inch Tuya Smart Home Multi-functional Touch Screen Central Control Panel WiFi IR Remote Control Intelligent Scenes Control

Features:

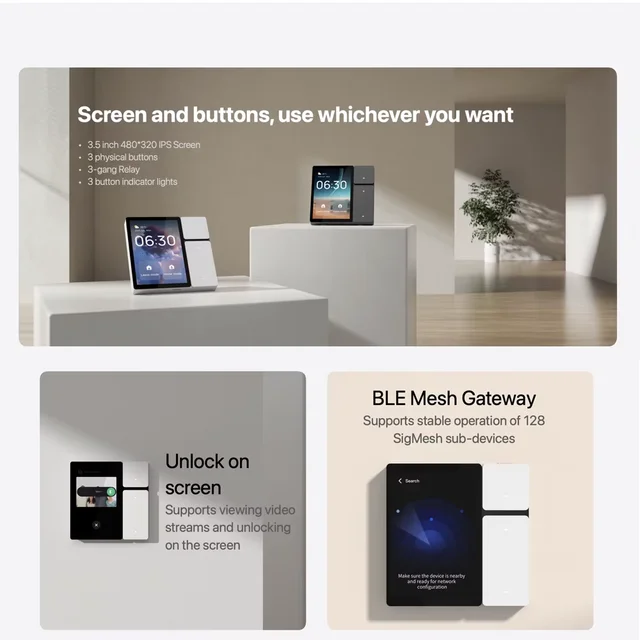

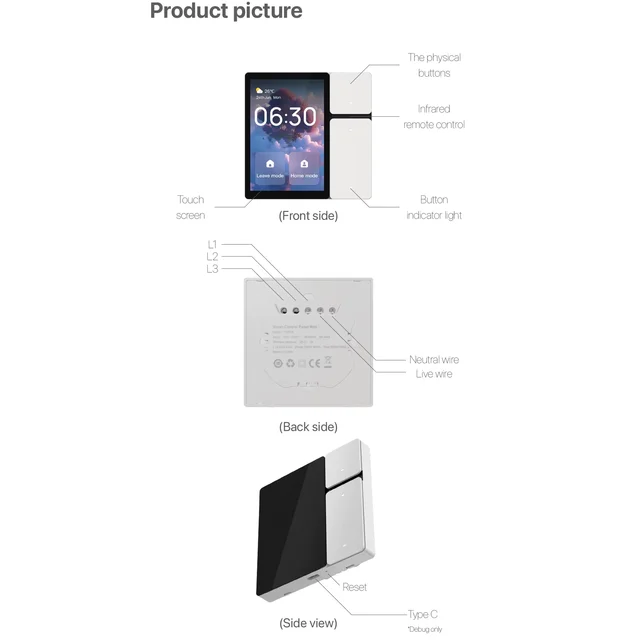

1. Versatile Interactive Device:The smart touch screen is a multi-functional interactive device that integrates a screen, three physical buttons, three relay channels, and an infrared remote control. Control various home devices and scenes directly from the screen, replacing traditional switches with the relay channels for lighting control.
2. Large Screen Ratio:The center control panel features a 3.5-inch display, boasting the largest size, highest screen-to-body ratio, and narrowest bezels in its class, providing a superior viewing experience.
3. High Touch Precision:Equipped with a GFF structure capacitive touch screen, the touch panel scene switch offers high touch accuracy and strong anti-interference capabilities, ensuring smooth and reliable multi-touch functionality.
4. Elegant Indicator Lighting:The smart central control panel’s buttons are treated with a CMF process involving varnish, color paint, and UV tactile paint, creating a sophisticated and subtle lighting effect that resembles the gentle glow of fireflies in the dark.

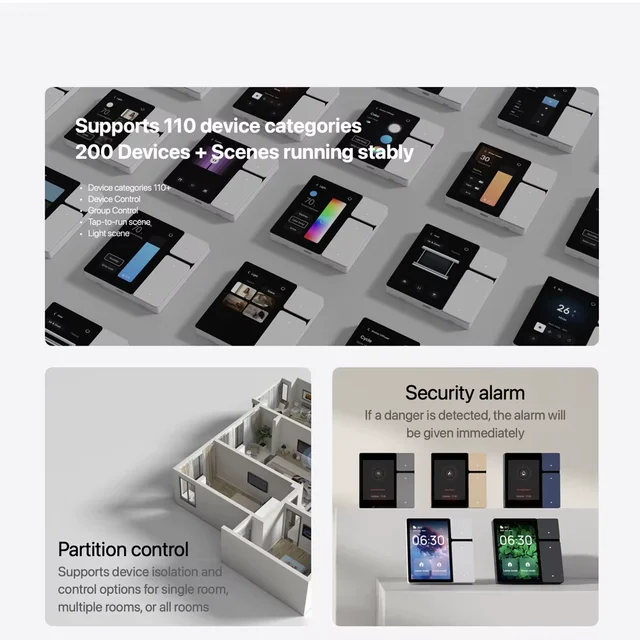

5. Asymmetric Button Design:The multi-functional touch screen control panel features a three-zone, two-segment asymmetric button design with three recessed infrared remote control LEDs, maximizing the infrared control angle for enhanced device management. It supports more than 110 device categories, unlimited number of devices and scenes, and supports 12 categories of infrared device control.

Specification:
Origin: Mainland China
Input: 100-240V~50/60Hz
Wireless protocols: Wi-Fi, sigmesh, IR
Maximum total load: 600W
Maximum load per channel: 200W
Working temperature: 0°C~40°C
Working humidity: 5%-90%RH (non-condensing)
Size:86*86*11.5 mm/3.39×3.39×0.45inch (excluding base)
86*86*35.5 mm (including base)
Packing size: 95*95*48mm
Gross weight: 250g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Packing list :

1 x Central Control Screen
1 x Screw Bag
1 x Product Manual
