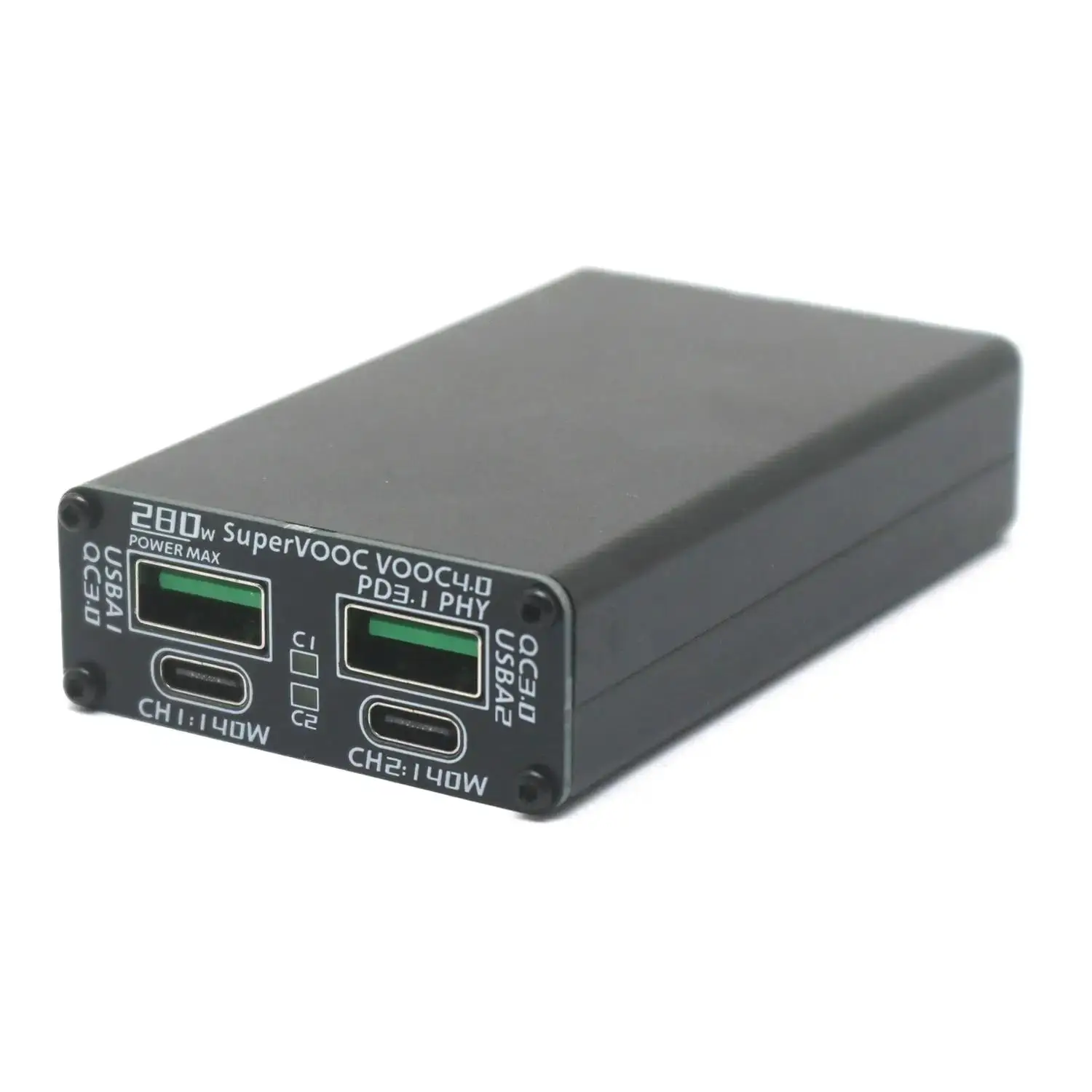

280W Universal Fast Charging Protocol Module
Before purchasing Please refer to the advertising video
Buck type: input should be greater than output 1.2v)
Key Features:
-
Full Protocol Support: PD3.1 SPR/EPR, UFCS, VOOC1.0/4.0/SuperVOOC, QC5/4/3+/3.0/2.0, AFC, FCP/SCP, PE2.0/1.1, SFCP, TFCP, BC1.2.
-
Max Output: 140W (28V@5A).
-

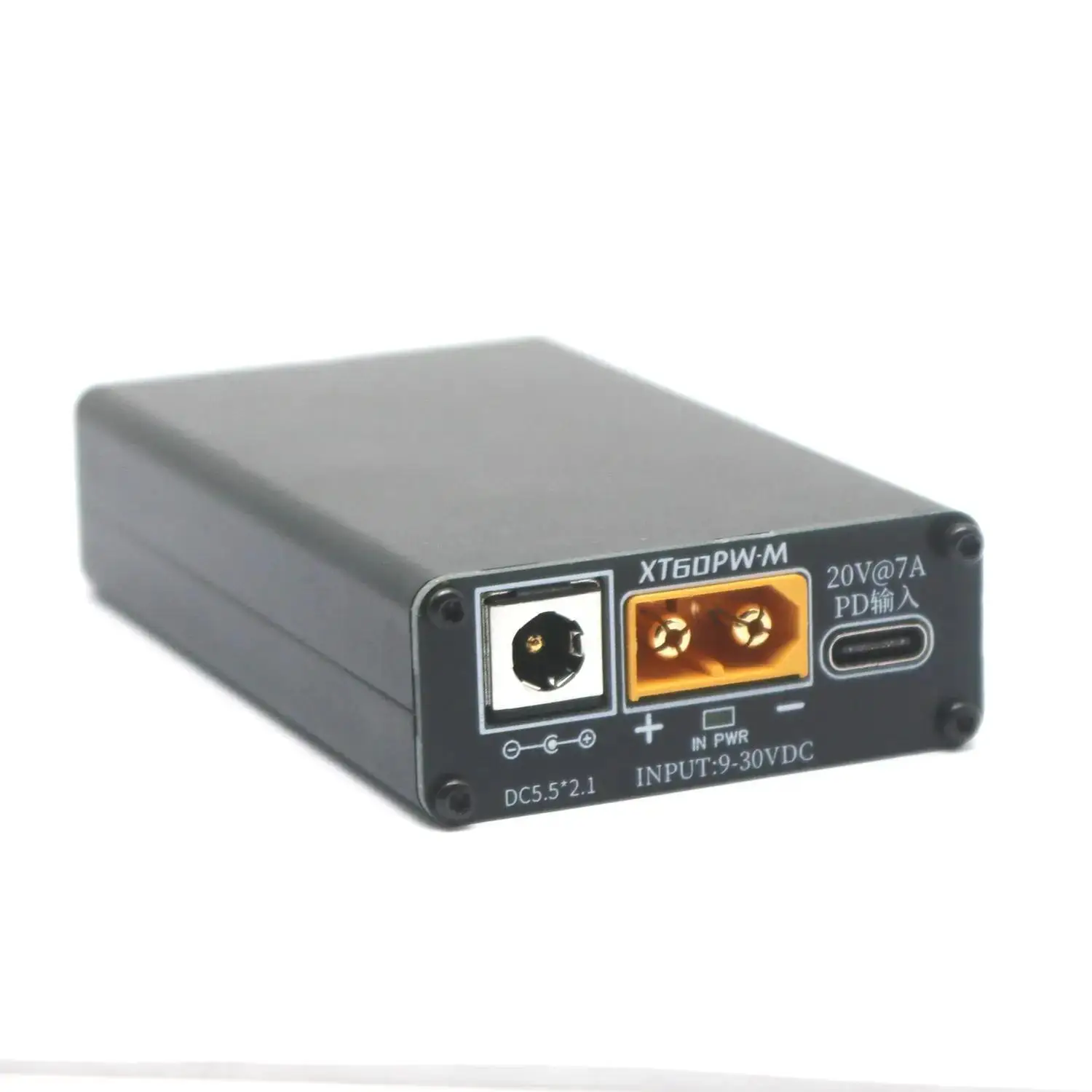

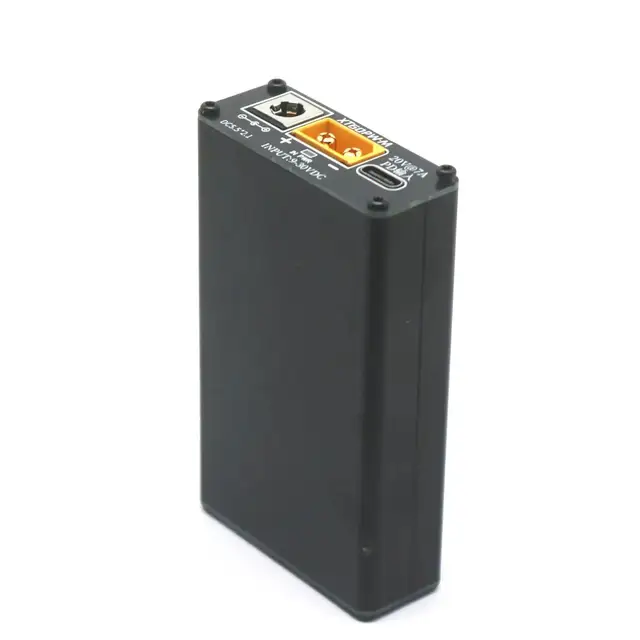

Input Voltage Range: 9–30V DC.
-
Max Output Current: 7A.
-
Smart Compatibility: Apple 2.4A, Samsung 2A, and Chinese charging standards.
-
Buck type: input should be greater than output 1.2v)

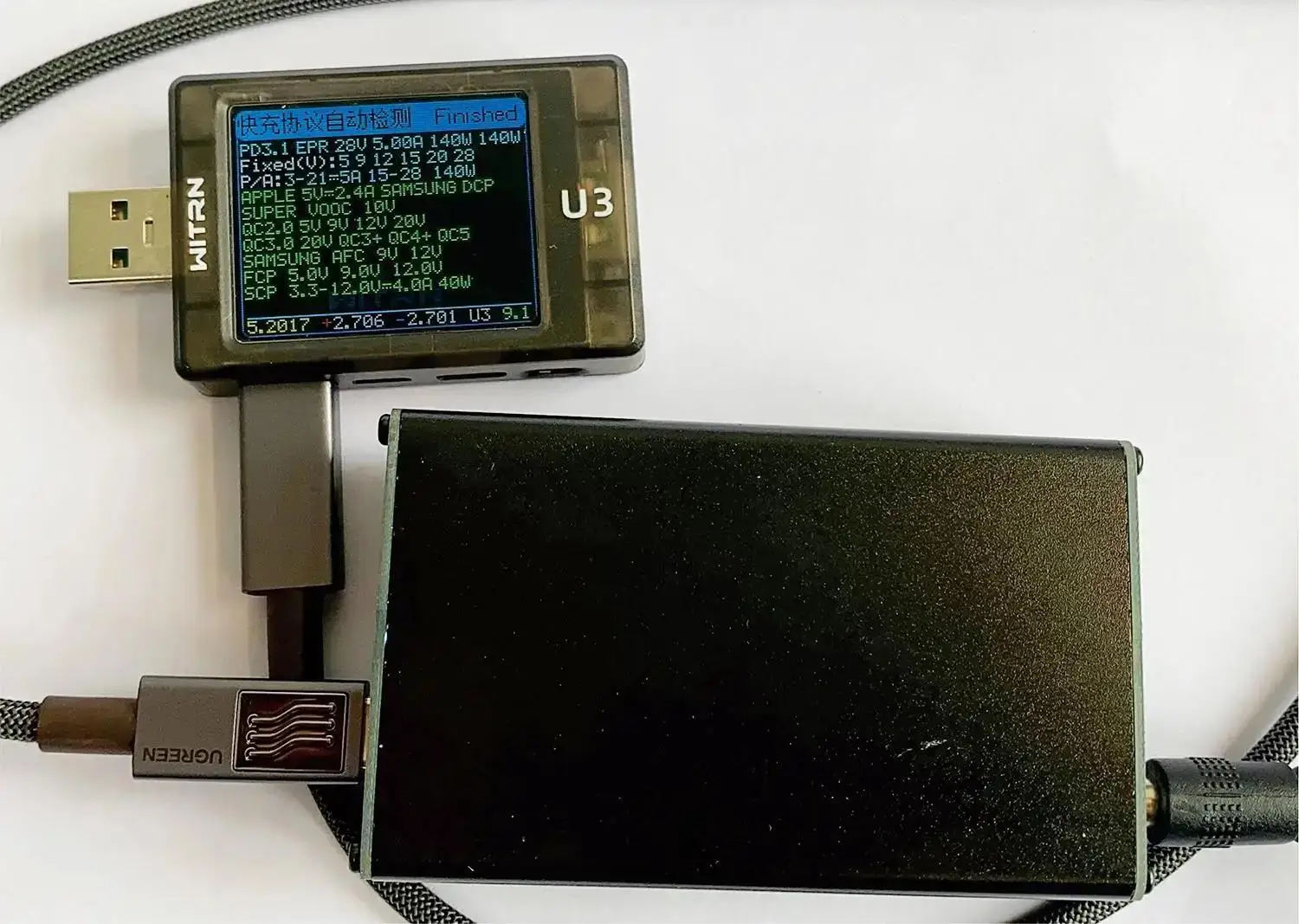

Fast Charging Protocols
|
Protocol |
Specifications |
|
PD3.1 |
Supports SPR/EPR/PPS, 140W max (28V@5A). Requires E-mark cable for 5A output. |
|
UFCS |
Output: 3.4–21V@5A. |
|
VOOC |
– VOOC1.0: 5V@4A. |
|
QC |
– QC5/QC4: Class A/B compliant. |
|
AFC |
Output: 5V/9V/12V. |
|
SCP |
Output: 3.3–12V. |
|
TFCP |
Output: Class A (4–12V), Class B (4–20V). Supports 25W/33W/45W/68W/80W/120W power curves. |
|
SFCP |
Output: 5V/9V/12V. |
|
BC1.2 |
Smart Adaptive Module: |
Cable Compatibility
-
Standard Cable: 20V@3A (60W max).
-
E-mark Cable: 20V@5A (140W max).
Protection & Safety
⚠️ Input/Output Overvoltage Protection
⚠️ Overcurrent & Short-Circuit Protection
⚠️ Thermal Throttling
Notes
-
WARNING: Use E-mark cables for 140W output to avoid overheating.
-
Compliance: Certified for PD3.1 (TID: 10710).
