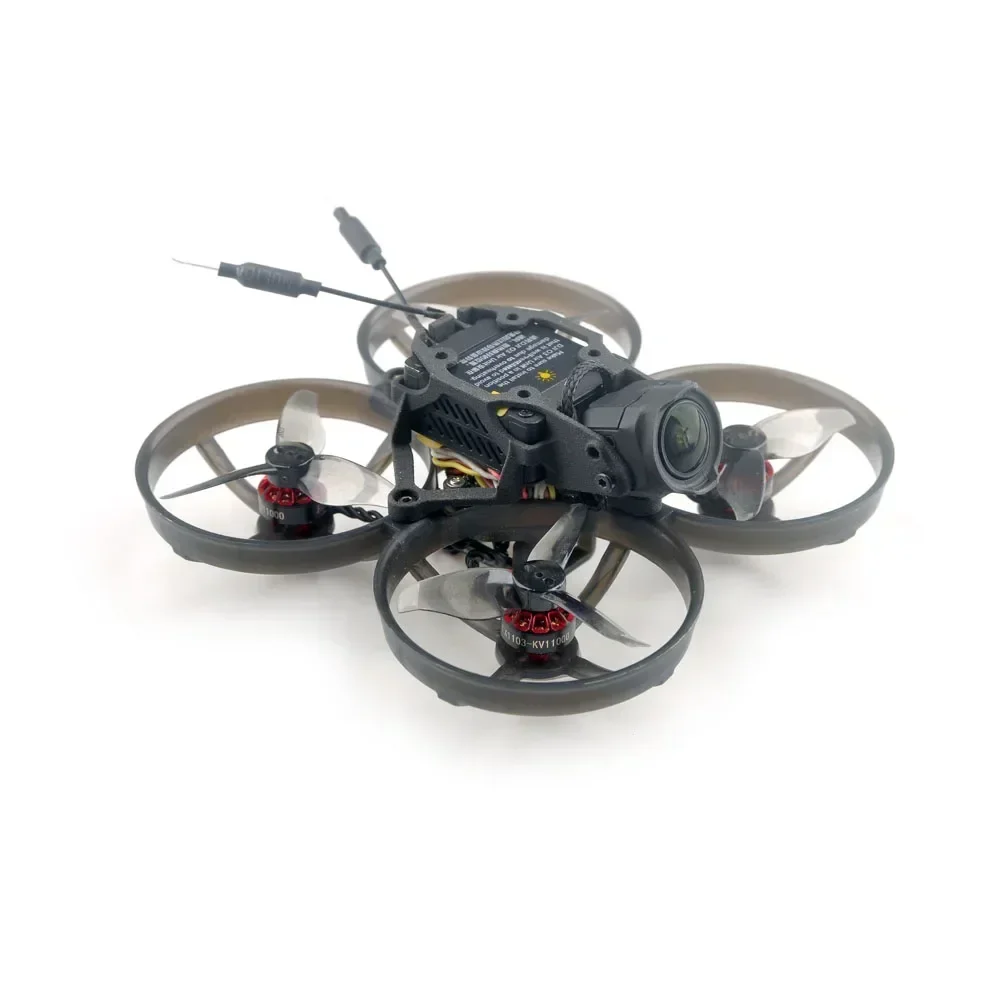

HappyModel Mobula8 HD – 85mm Micro Whoop Quadcopter FPV Drone O3 WTFPV / Walksnail / HDZERO

Item Name

Qty

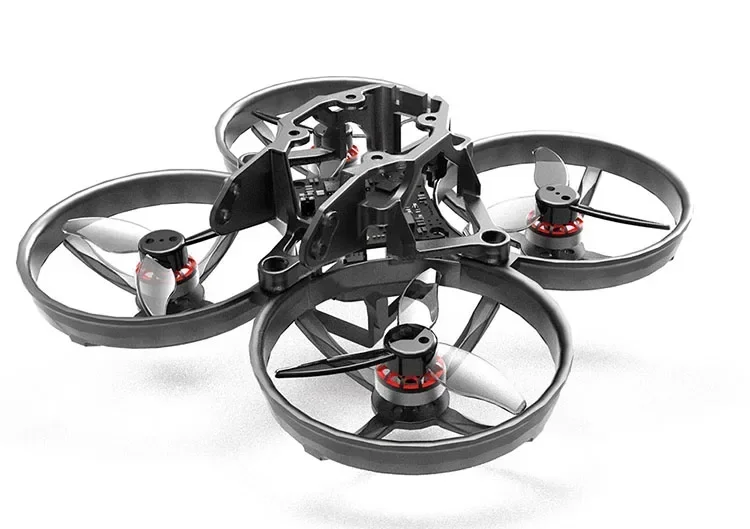

Mobula8 Frame

1

CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4

1

EX1103 KV11000 brushless motor

4

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

1

Option1: O3 Air unit

1

Option2: Walksnail avatar HD Mini 1S lite kit

Option3: HDZERO Whoop Lite bundle

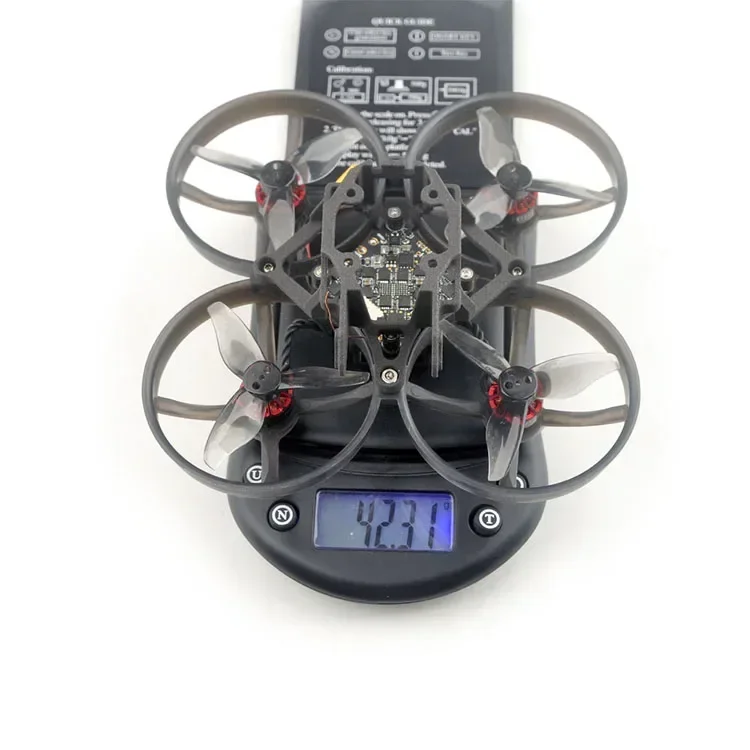

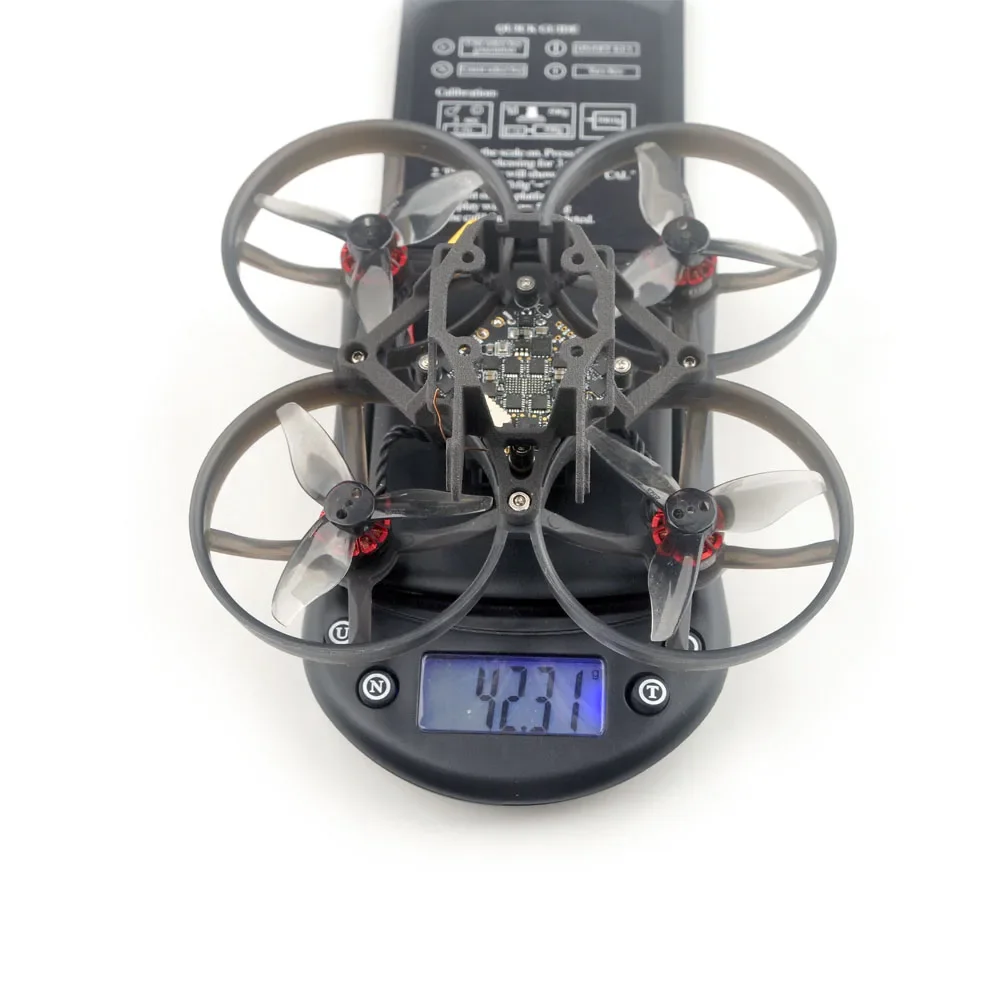

Option4: No VTX and camera version

Canopy(O3/Walksnail/HDZERO optional)

1

Screw driver

1

Motor

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Propellers

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270  (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

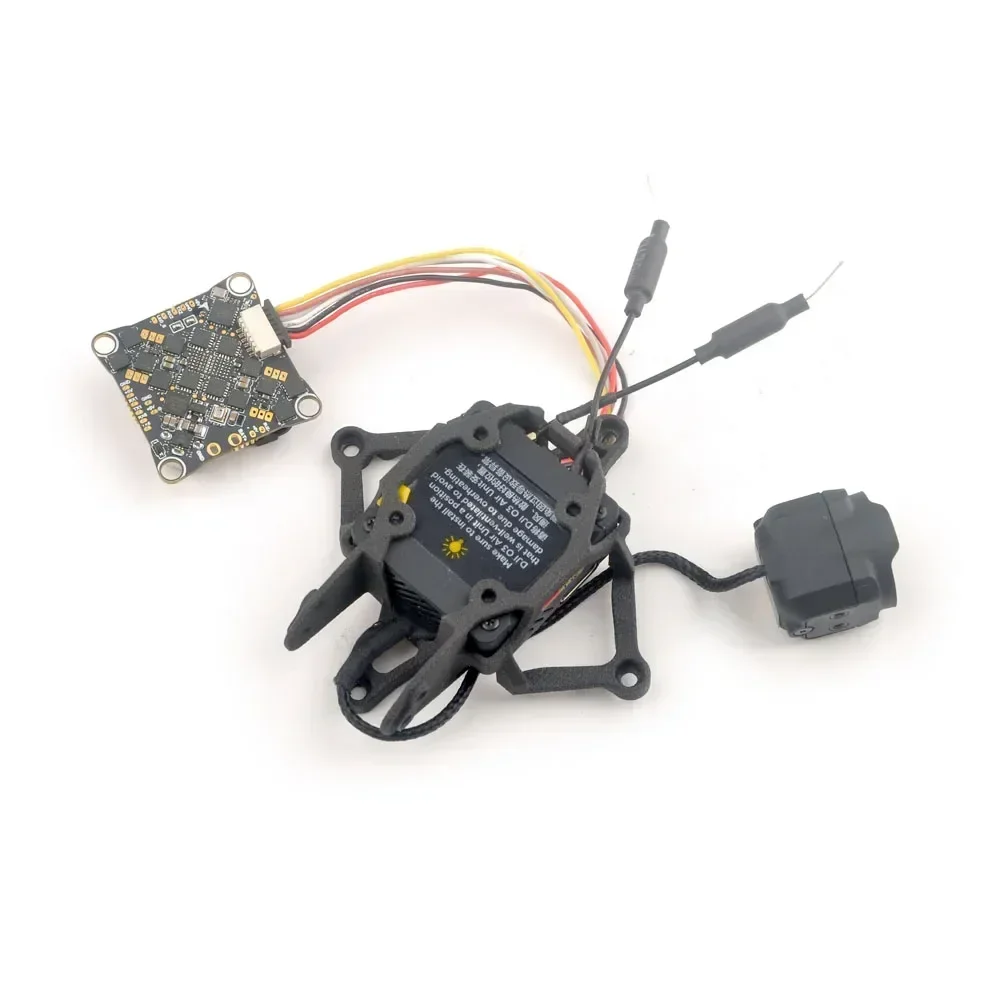

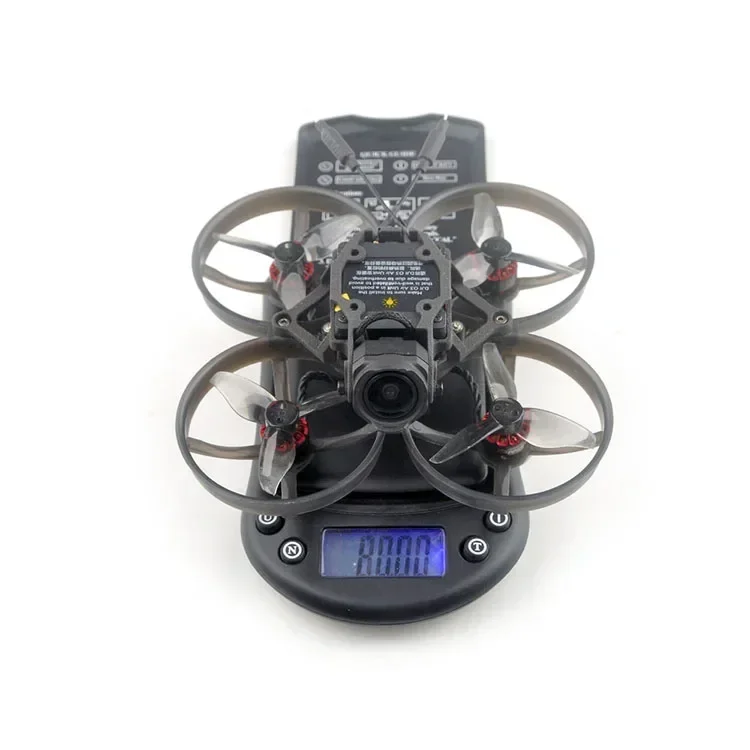

O3 Air Unit

Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
D-Cinelike mode for Vivid Colors
Flagship O3+ Video Streaming
Customizable Canvas Mode
155° Super-Wide FOV
1/1.7-Inch Sensor
Compact in Size

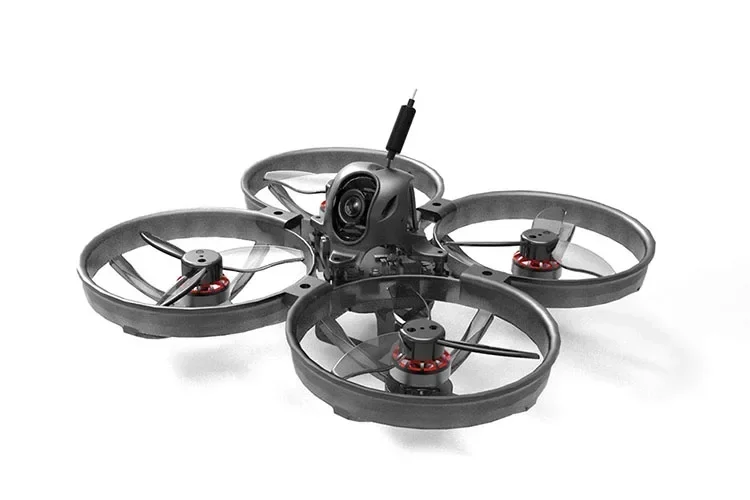

Walksnail version

Camera
Model       Avatar lite camera
Image Sensor     1/2.7″1nch
Resolution          1080P/60fps,720P/120fps,720P/60fps
Ratio      16/9  4/3
Lens          2.1mm
FOV         170°
Aperture            F2.0
Shutter Rolling    Rolling shutter
Min.Illumination  0.001Lux
Weight       1.8g
Dimensions        14*14*16mm
VTX
Model        Avatar mini 1s module
Communication Frequency    5.725-5.850GHz
Transmitter Power (EIRP)       FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface        JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes   25.5*25.5mm
Dimensions         30*30*6.5mm
Storage      8G
Recording  1080p/720p
Weight       5.1g
Operating Temperature  -20-40℃
Channels    8
Wide Power Input         3.1V-5V
Supported FC System  Betaflight
OSD  Canvas mode
Bitrate        25mbps 50mbps
Latency      Average delay 22ms
Antenna      IPEX

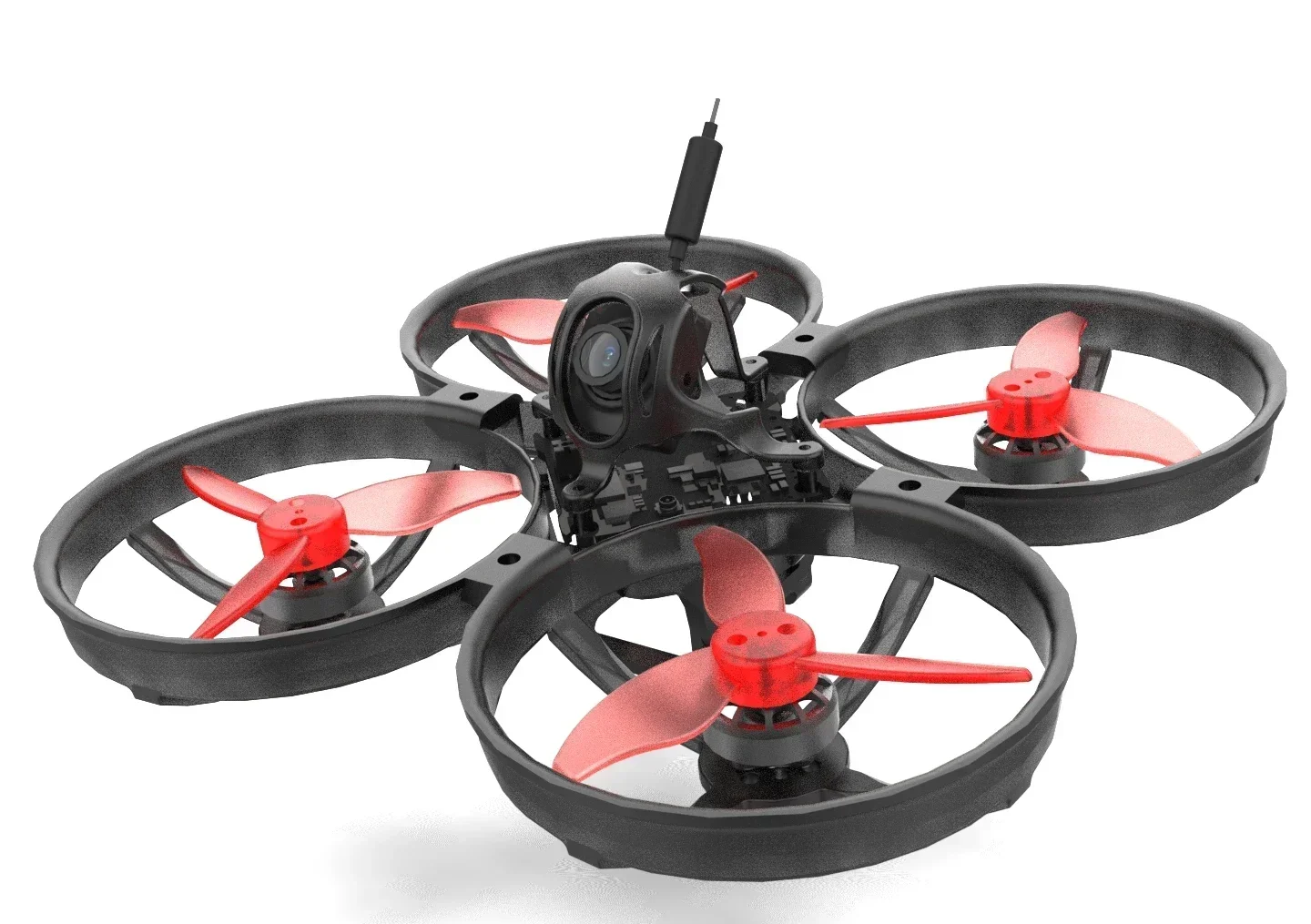

HDZERO Version

HDZero Nano Lite Camera
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX
1-3S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)
