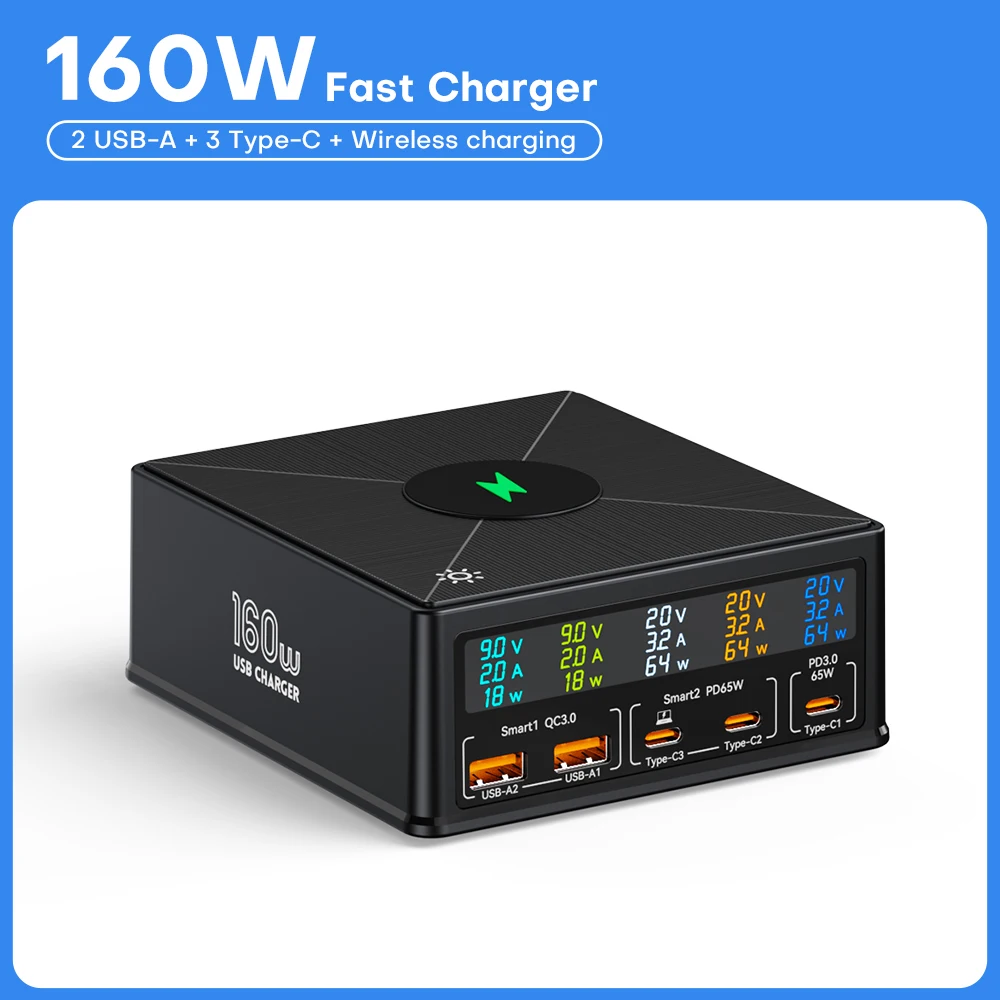

160W Desktop Multi-function USB Charging Station
Fast Charging USB + Wirelss Charging + LED Display
Brand: ASOMETECH
Model Number: 868H
Input: 100-240VAC/50-60Hz
Output:160W Max
Type-C1 Output : 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25Aï¼›PPS: 3.3-11V/5A, 3.3-21V/3A 65W (max)
Type-C2/Type-C3: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25Aï¼›PPS: 3.3-11V/5A, 3.3-21V/3A 65W (max)
USB-A1 /USB-A2 : QC3.0 5V/3A,9V/2A,12V/1.5A, 4.5V/5A,5V/4.5A 22.5W (max)
Wireless Output: 15W/10W/7.5W/5W
USB-A1 + USB-A2 :12W + 12W;
C1 + C2 : 65W + 65W;
C1 + C3 : 65W + 65W;
C2 + C3 : 20W + 45W;
Type C1 + C2 + C3 = 65W + 20W + 45W ( OutPut Max );
C1+C2+C3+A1+A2=65W + 20W + 45W + 12W + 12W;
Packing List:
1 x USB Charger
1 x User Manual
1 x Power Cord
Features
âš¡ Type C1 Support PD 100W Max Fast Charging For Macbook and other Laptopï¼›Support Super Fast Charging For Samsung S23 Ultra S22 S21 S20 series / iPhone / iPad series / Huawei Series and Moreï¼›
âš¡Type C2/C3 Support PD 65W Max Fast Charging For Macbook and other Laptopï¼›Support Super Fast Charging For Samsung S23 Ultra S22 S21 S20 series / iPhone / iPad series / Huawei Series and Moreï¼›
âš¡ USB-A1 / USB-A2 has QC3.0 FCP SCP Fast charging protocol for multiple brands of devicesï¼›

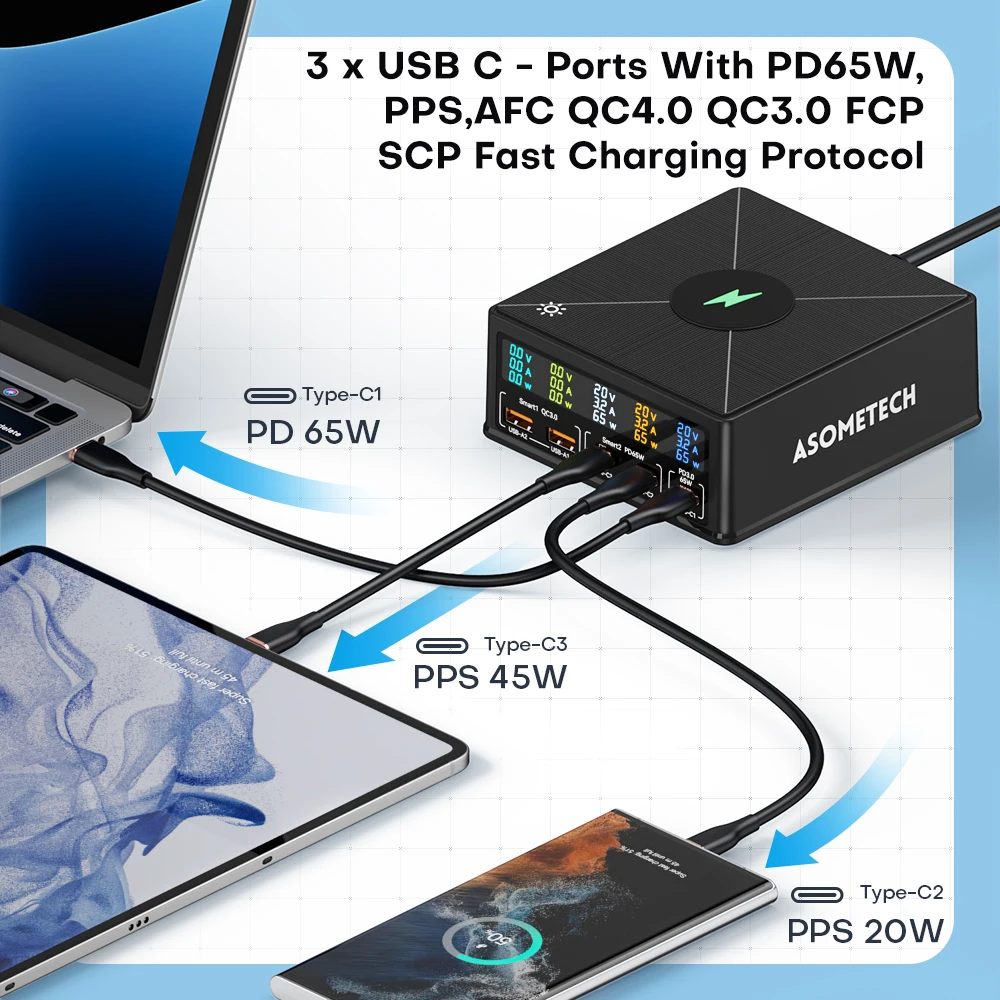

âš¡ If only C1+C2/C3 ports are used, then 2 laptops are supported for simultaneous fast charging (C1-65W; C2-65W)ï¼›
âš¡ Supports simultaneous fast charging of multiple devices, saving device charging timeï¼›
âš¡ The display can simultaneously show the output parameters of 5 USB portsï¼›
âš¡ This charging cradle has a display touch switch to turn off/on the digital displayï¼›
âš¡ This charging stand comes with a master switch to turn off the input current for safe useï¼›
FAQ
Q1:Why is the C-port output of the charging cradle labeled 65W, but the power of my device when charging is less than 65W?
A1:This is due to the built-in intelligent chip of the charger. The charger will detect and identify the charging device accessed and automatically match the appropriate fast charging speed according to the maximum input limit of the charging device and the battery capacity, so that the device can get both fast charging and avoid causing overcharging;
If you have any questions, please contact our customer service, we will give you a professional answer within 24 hours, thank you.
ASOMETECH Team
6 in 1 160W fast charging
PD+QC3.0
160W High Power PD+QC3.0 Fast Charging
Adopt 160W high power, apply notebook computer charging  technology to the socket,balance fast charging and safety,withlarger power and smaller volume
6 in 1 Desktop Charger
Support Multi-device Charging

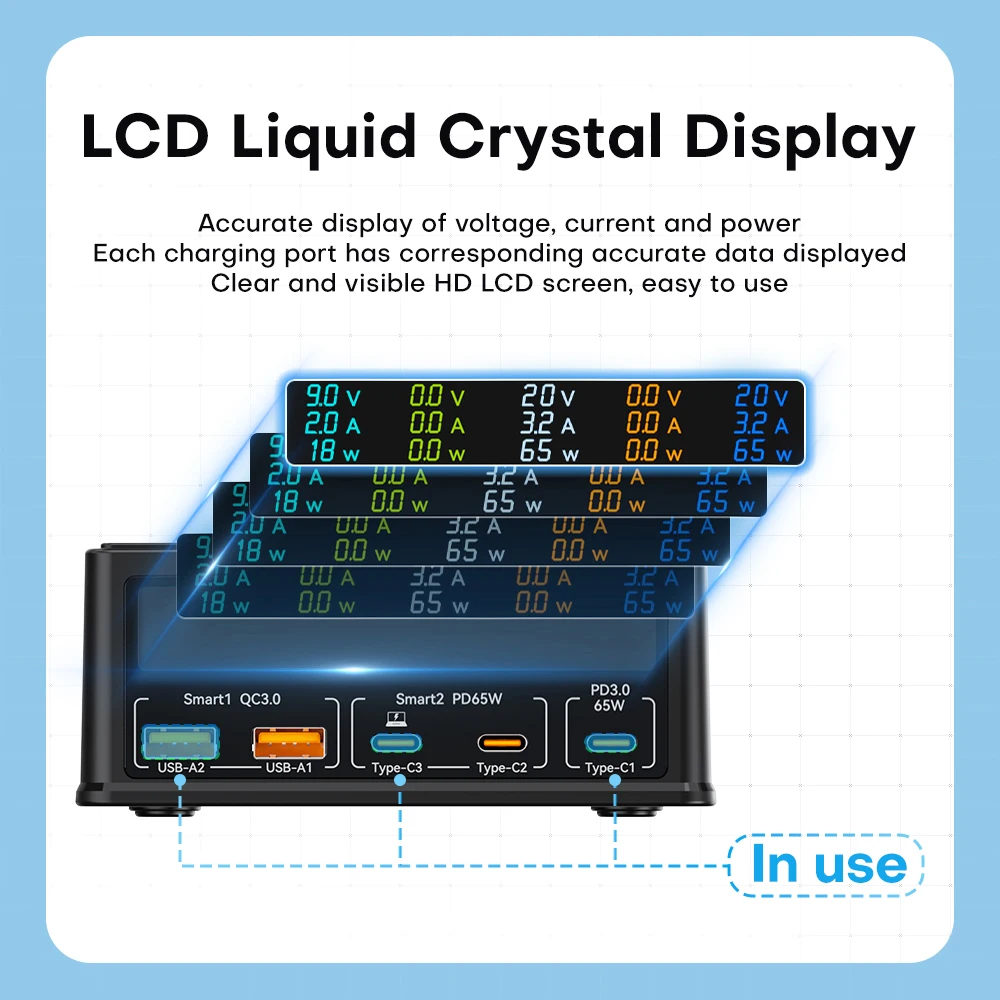

LCD Liquid Crystal Display
Accurate display of voltage, current and power
Each charging port has corresponding accurate data displayed
Clear and visible HD LCD screen, easy to use

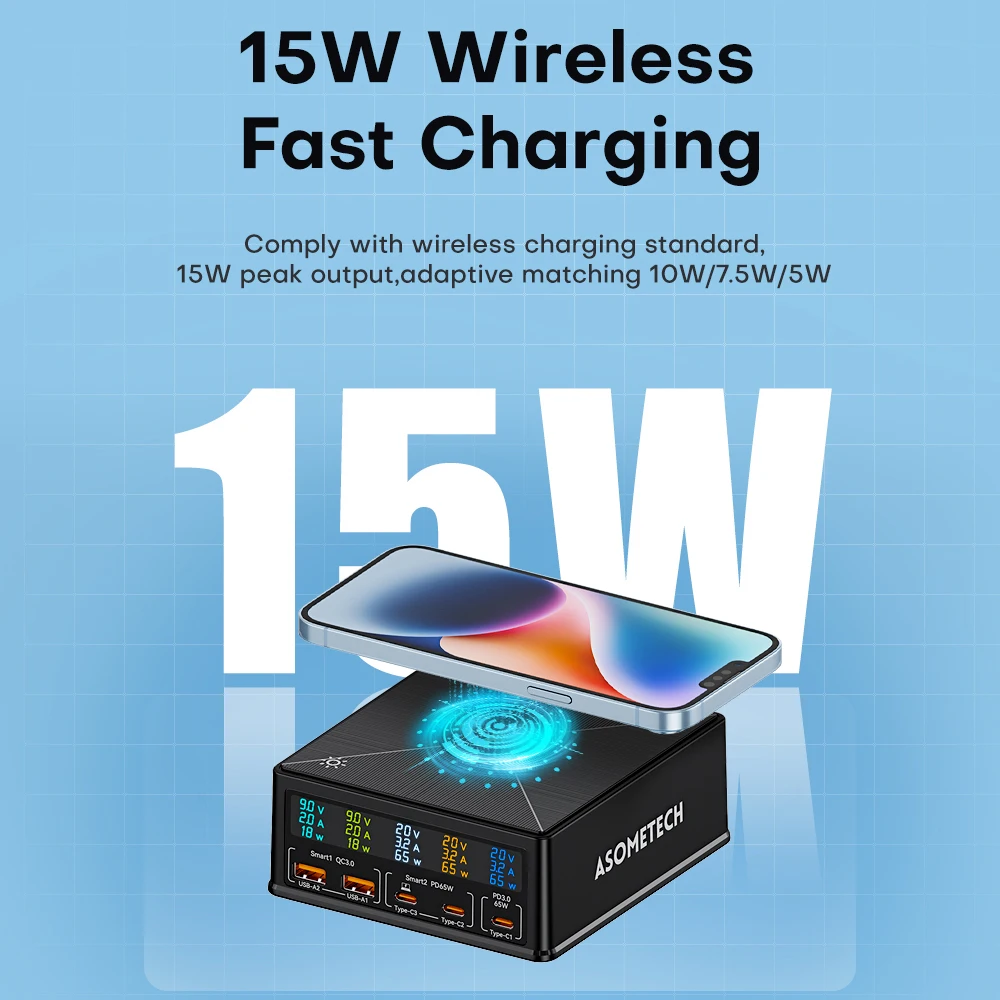

15W Wireless Fast Charging
Comply with wireless charging standard,15W peak output,adaptive matching 10W/7.5W/5W

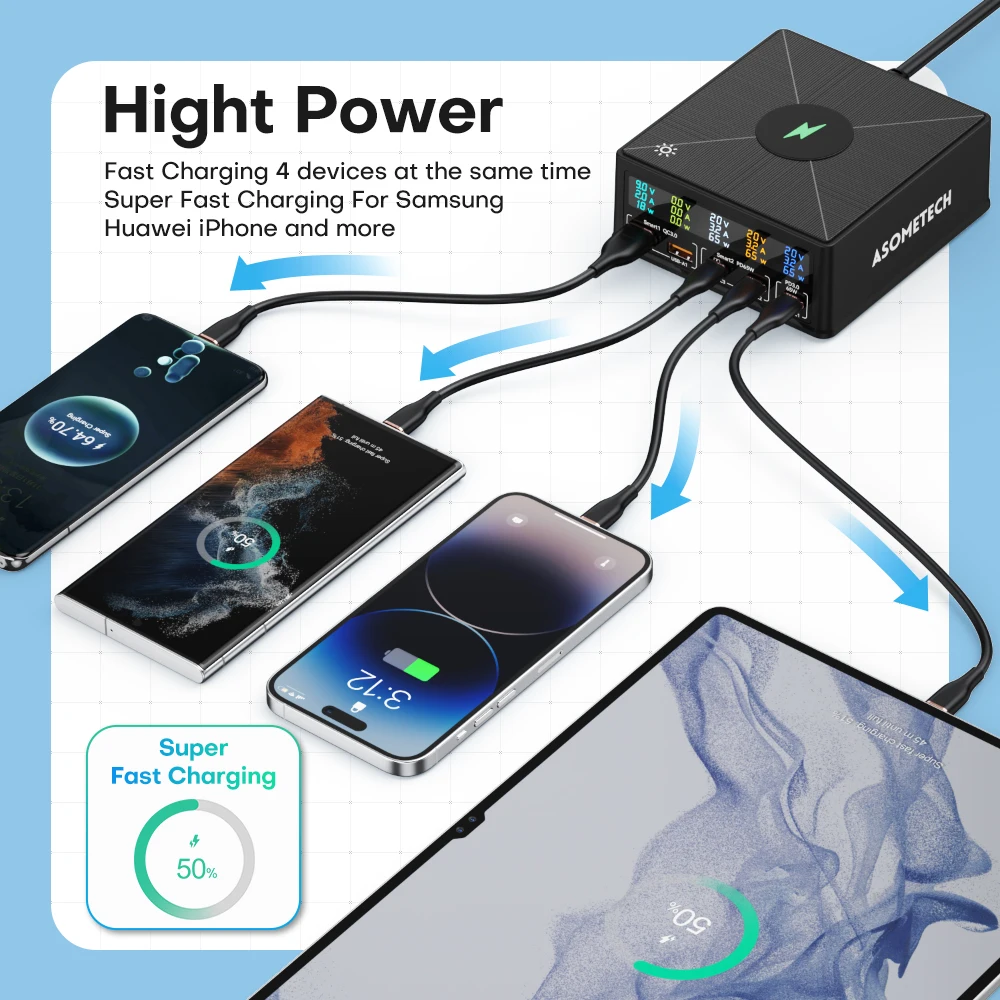

Hight Power Fast Charging 4 devices at the same time
Super Fast Charging For Samsung Huawei iPhone and more
Anti-slip Silicone Design
Specially added silicone filled wireless design for mobile phones,effective anti-slip and protection of your mobile phone
LCD Liquid Crystal Display
The touch switch is designed to close the display screen by gentlytouching it,and you can freely choose to turn it on or off
One For All
Fast Charging your all devices
Wide Compatibility
Fast charging protocol:PD3.0(PD2.0)/QC3.O/QC2.O/PPS/SCP/AFC/PE+
Multi-port Charging with the Same Speed
Your top choice for PD fast charging, triple-port output at the same time, drastically increasing your work efficiency
